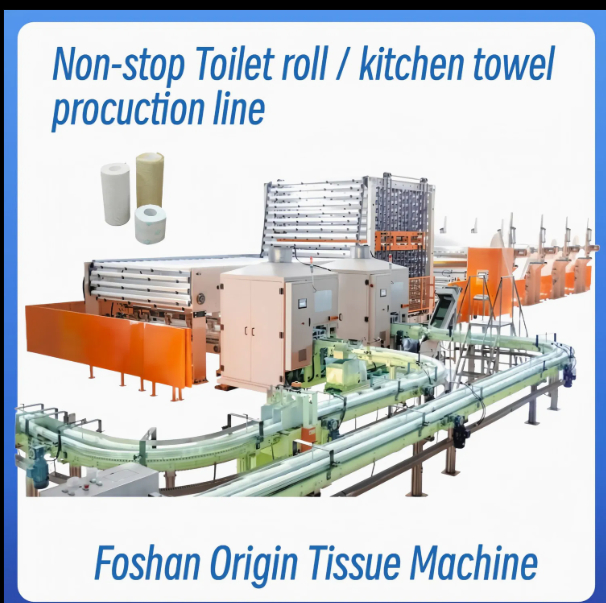

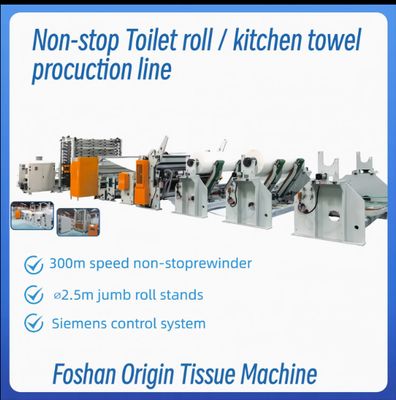

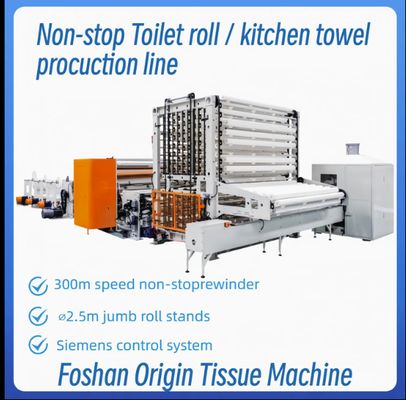

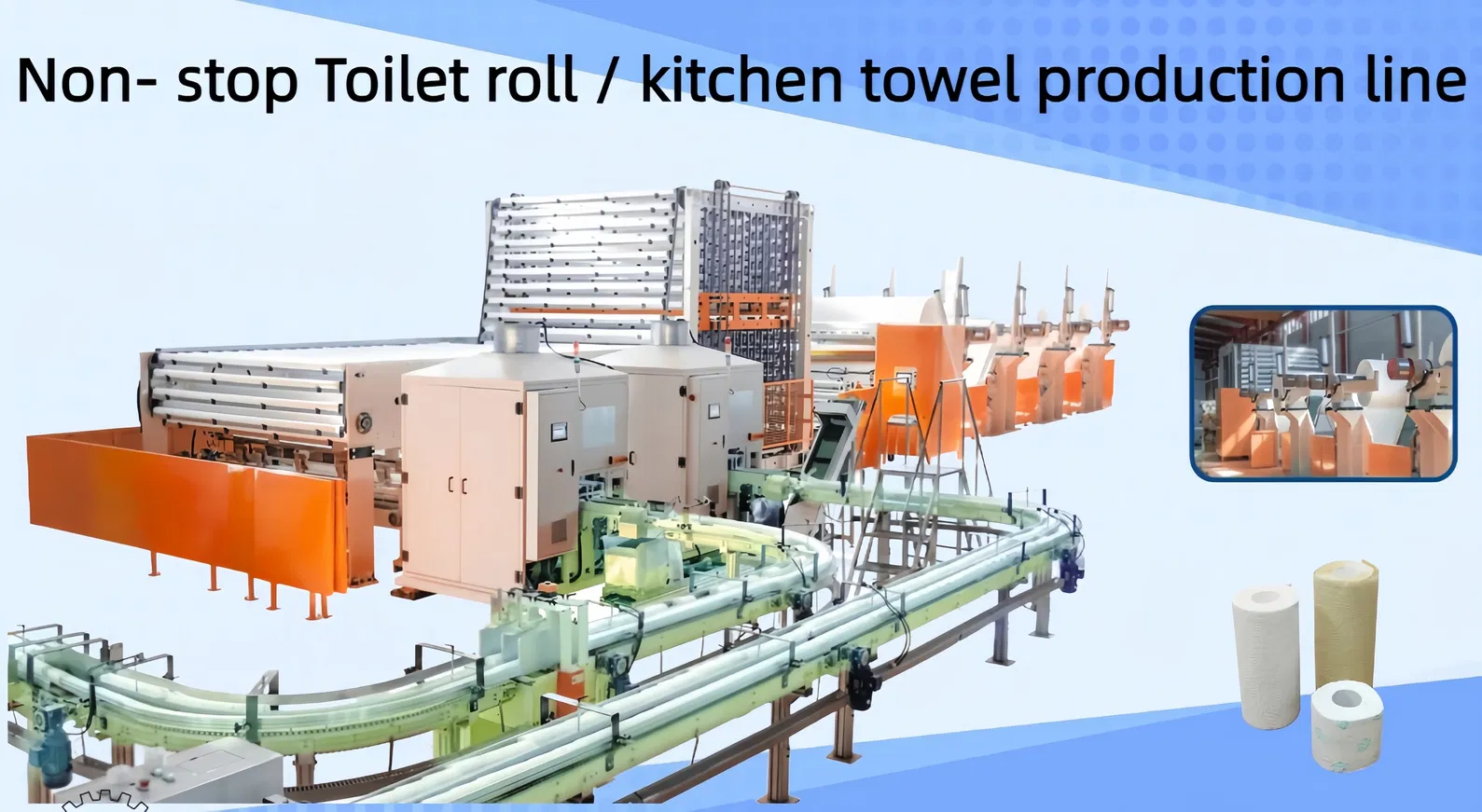

NON-STOP Fully Automatic Toilet Paper Production Line with embossing unit
|
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
Gedetailleerde productomschrijving
| Snelheid: | 300 meter/min | Document gsm: | 13-18 GSM/LY |
|---|---|---|---|
| Reliëf: | Staal tot rubber | Lijmlamineer: | Optioneel |
| Achterstandeenheid: | 1-5 eenheden | Afgewerkte diamter: | 90-300 mm |
| Garantie: | 12 maanden |
Product Description
Machine features:
1. Scope: Toilet roll /kitchen towel / Bed sheet roll
2. Running function: non- stop continuous rewinding
3. Running speed: 300m/min
4. Web cut-off : by perforation unit
5. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
6. Control system: Six axis motion control system
7. Optional unit: Edge-embossing,Embossing unit, Lamination unit
8. Adopts Siemens control system

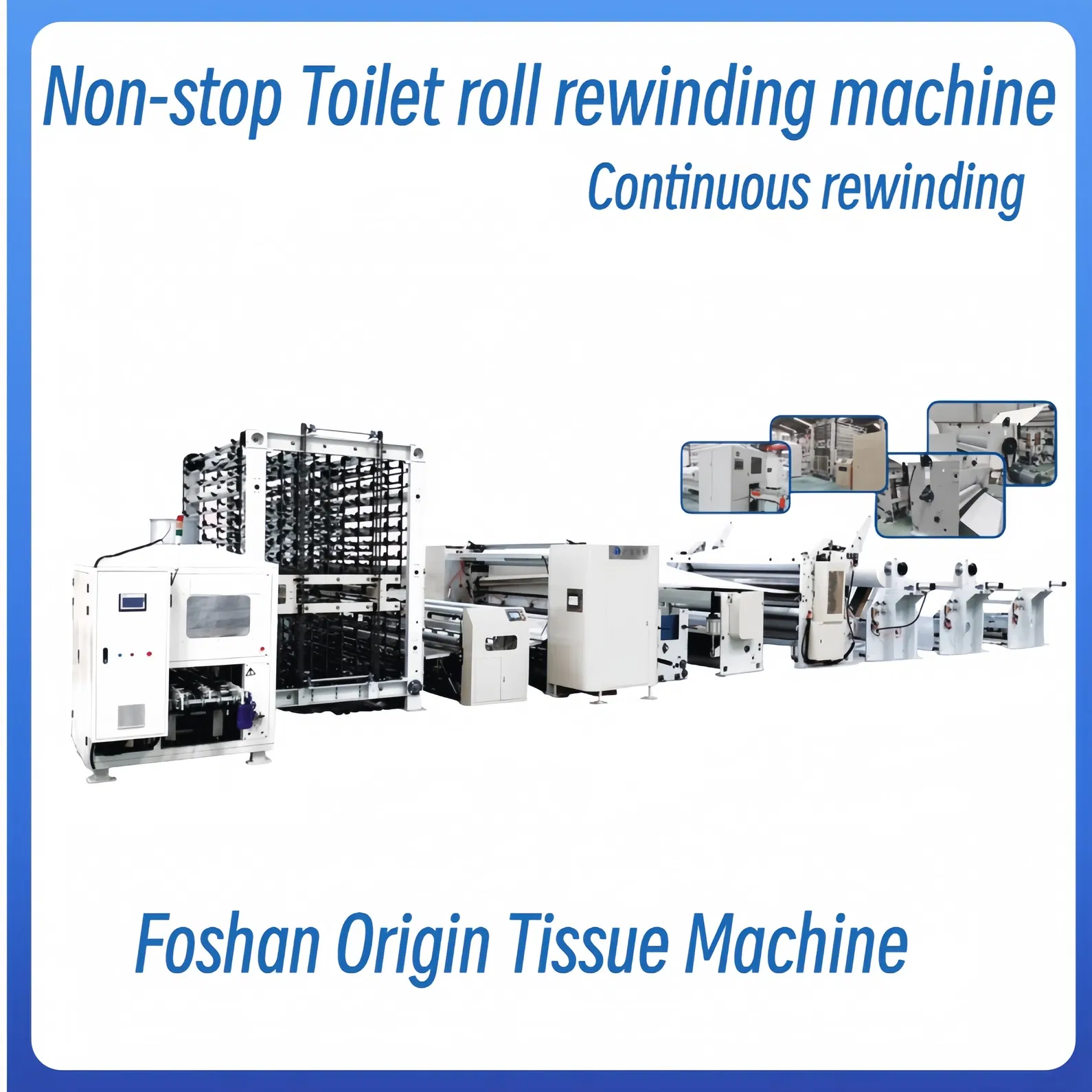

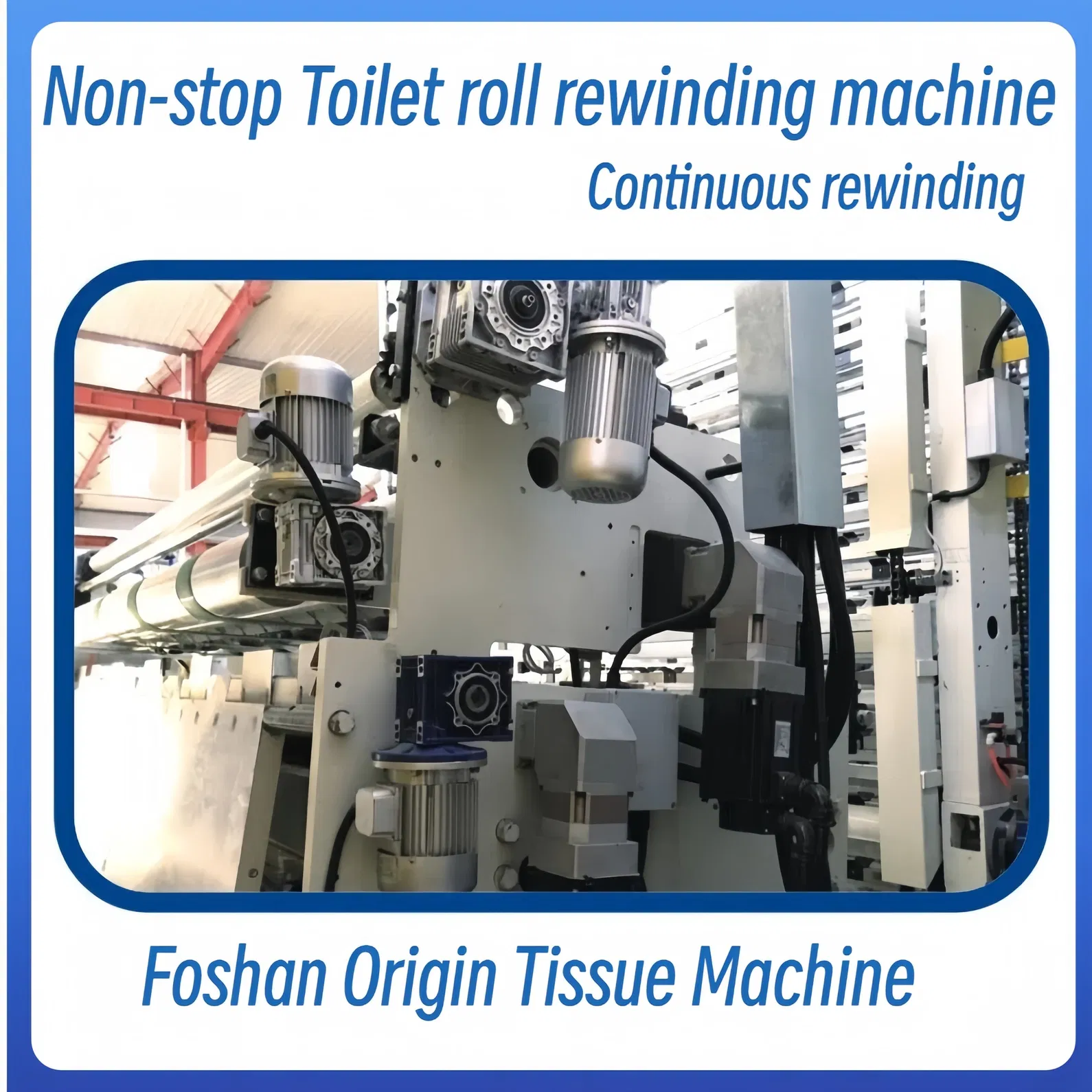

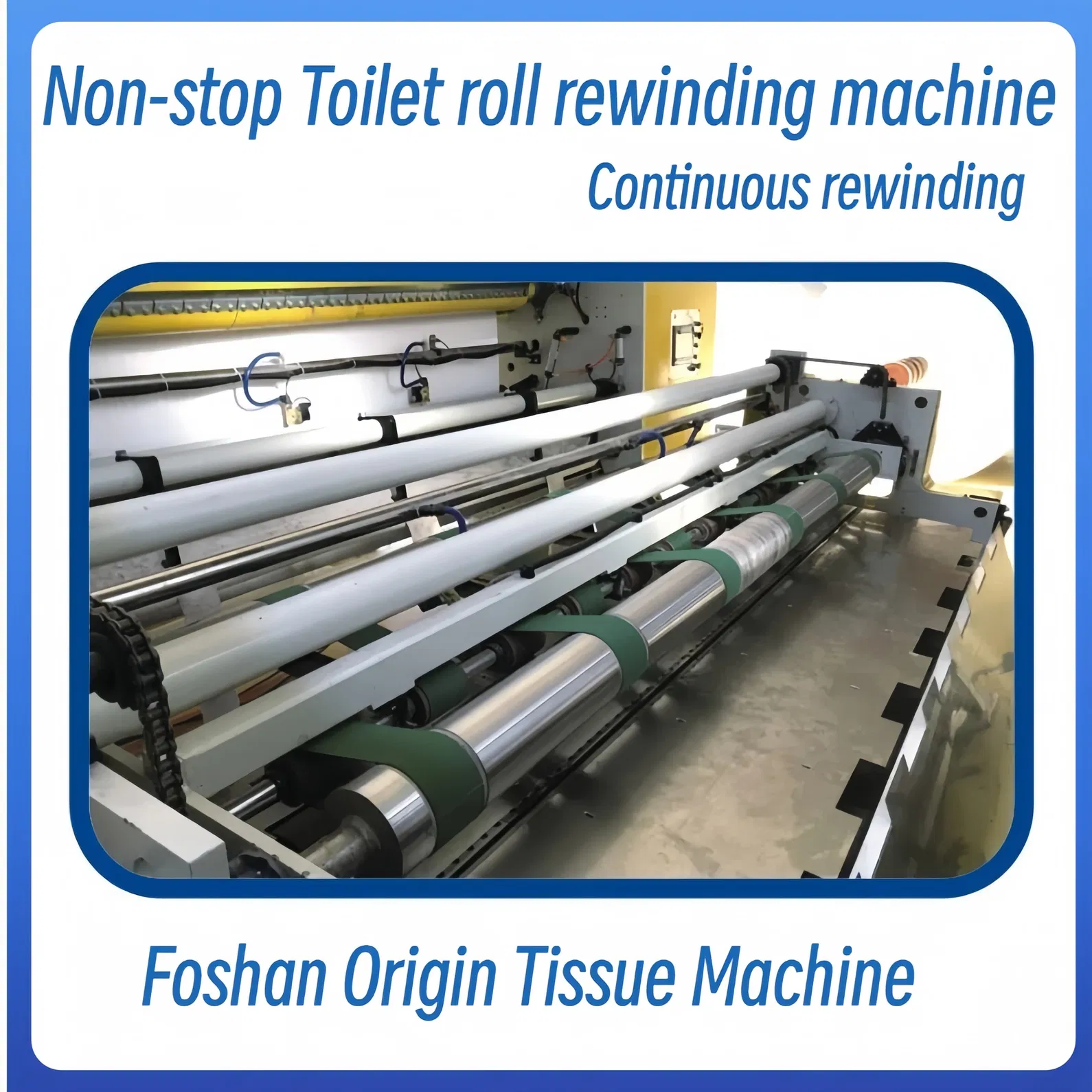

Non-stop rewinding machine
| No. | Description | Parameter |
| 1 | Roller width | 3000mm |
| 1.1 | Winding function | Continuous operation with non-stop log winding & discharge |
| 1.2 | Log cut off way | In-machine log end web fully cut off (by rubber plate) |
| 2 | Output log diameter | ¢90-160mm |
| 2.1 | Log winding tension adjustment | Set by HMI |
| 2.2 | Log diameter adjustment | Control by servo motor |
| 2.3 | Log length adjustment | Set by HMI |
| 2.4 | Log paper core outer diameter | 40mm--62mm (specified by customer) |
| 2.5 | Driving | Independent motor |
| 3 | Edge-embossing | Edge-embossing bottom roller is installed on the winding unit ( Edge-embossing wheels is an optional item) |
| 3.1 | Edge-embossing function | One full piece airbag pressurization (optional) |
| 3.2 | Edge-embossing wheel | With laser engraving pattern |
| 3.3 | Edge-embossing wheel Qty | Depends on the pattern designed |
| 3.4 | Driving | timing pulley + cone belt pulley transmission |
| 4 | Spiral perforation blade shaft | 6pcs of upper perforation blades |
| 4.1 | Perforation line | Toilet paper 4:1, Kitchen paper 6:1 |
| 4.2 | Perforation sheet size Tolerance | ±1mm |
| 4.3 | Sheet size | Standard size 90-180mm (control by independent motor, set by HMI) |
| 4.4 | Web wrapping Auto-Shutdown System | Includes |
| 4.5 | Driving | Independent motor |
| No. | Description | Qty (set) | Remark |
| 1 | Rewinder | 2 | Jumbo roll diameter≤2.5m, with core shaft |
| 2 | Automatic jumbo roll shaft Loading/Unloading Device | 2 | |
| 3 | Rewinding part | 1 | Finished tissue roll diameter: 90-160mm |
| 4 | Perforation part | 1 | |
| 5 | Paper core feeding and glue device | 1 | |
| 6 | Paper core storage | 1 | storage 80 log approx. (depends on roll diameter) |
| 7 | TS20 Sealing machine | 1 | Glue spraying type |
| 8 | A150 Accumulator | 1 | First in-first out, effectively storing 100 logs |
| 9 | Steel to rubber embosser | 1 | 320mm steel embossing roller diameter 320m |
| 10 | LS150-2L log saw | 1 | |
| 11 | Electric control system | 1 | |
| 12 | Foundation installation board | 1 |
Foshan Origin Machinery Co., Ltd.

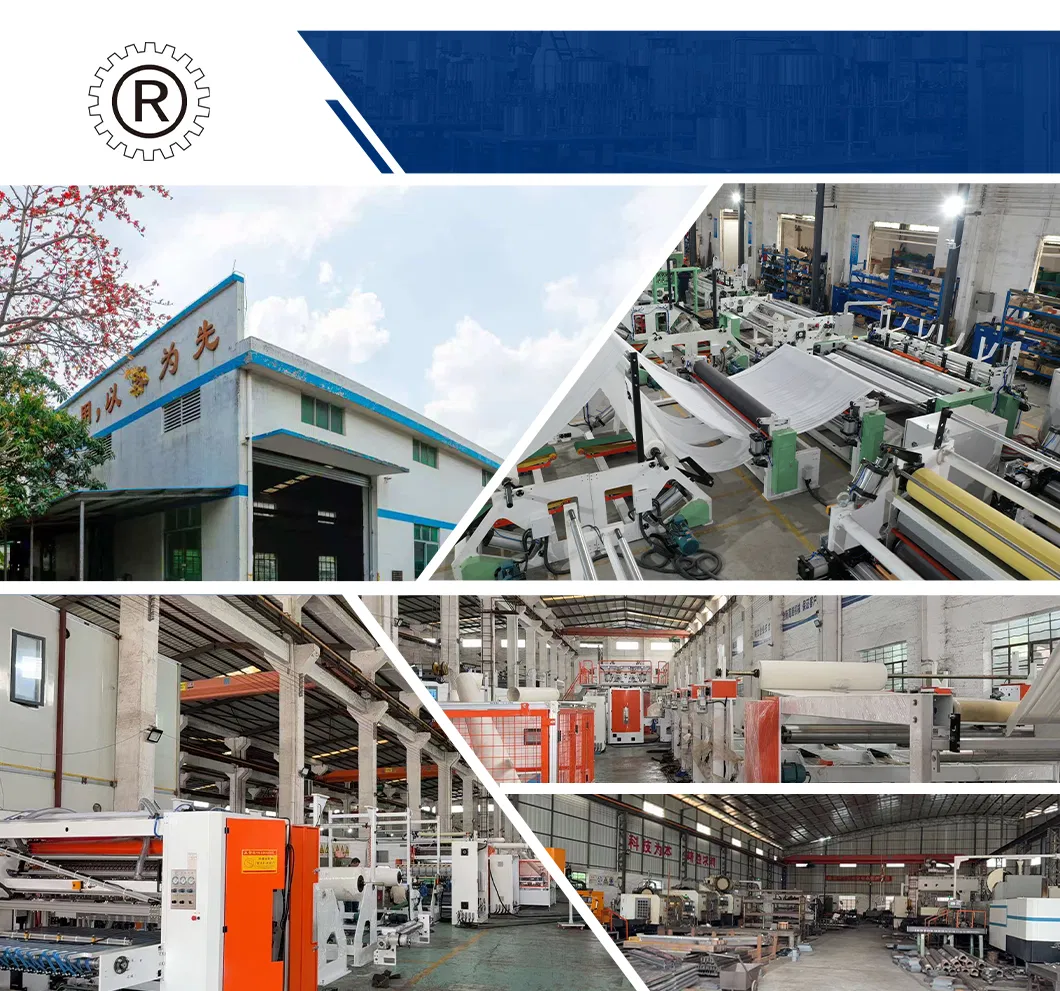

Foshan Origin Machinery Co., Ltd is based in Foshan city - the China technology heart of tissue paper industry. We have been specializing for over 30 years in the design and manufacture of converting machinery for the tissue industries.
Our machinery range includes: Roll products rewinding machines, Facial tissue folding machines, Napkin machines, Pocket tissue machines, N/M fold paper towel machines, Packing machines and other related machines.
